We recently received an order to manufacture hydraulic hoses based on a client's detailed drawings. Our team efficiently produced the complete hose assemblies within one week, adhering precisely to all stated technical specifications for the hose and its fittings.

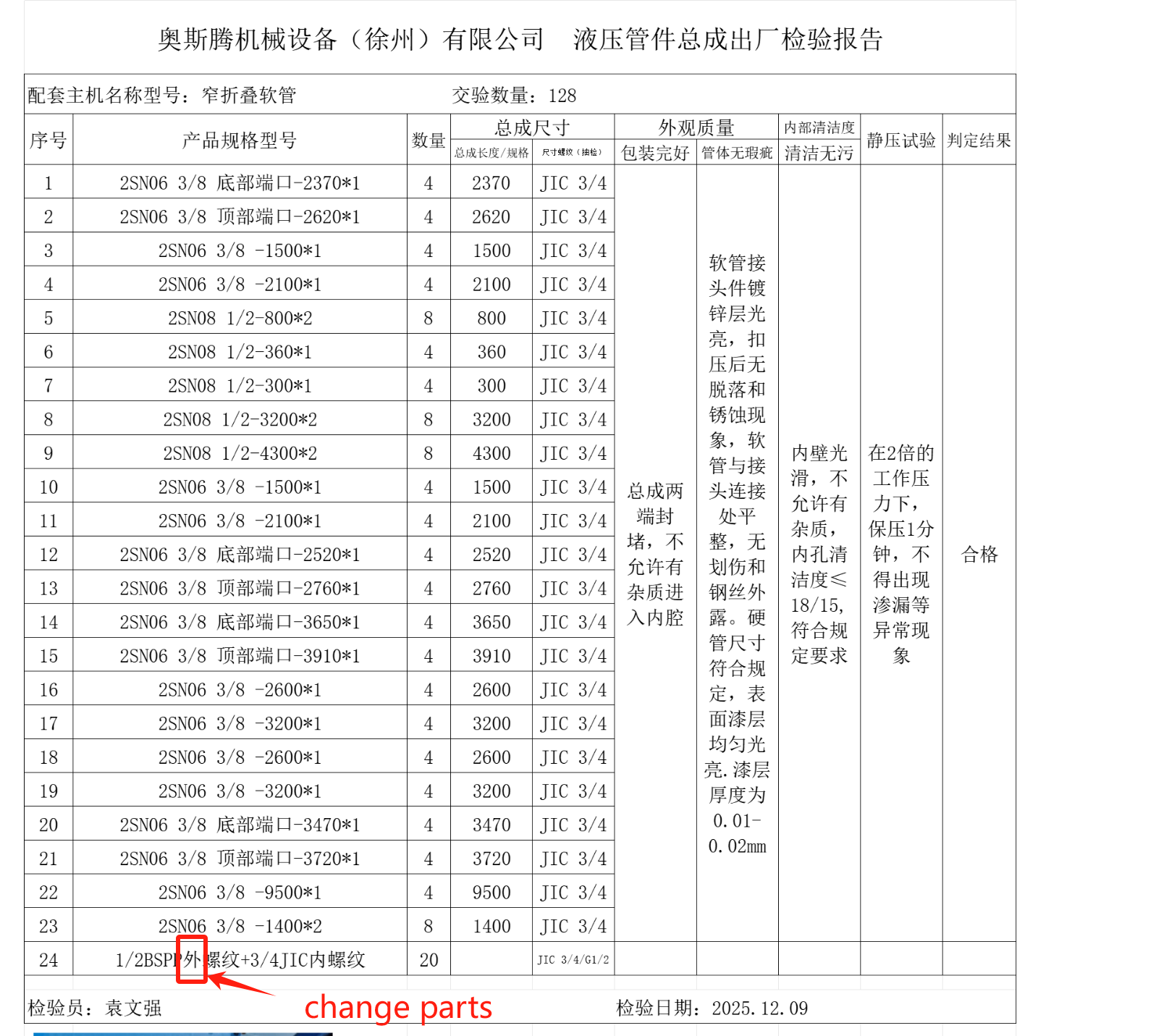

During the final pre-shipment inspection, our quality team identified a critical inconsistency. While the hoses with attached fittings perfectly matched the drawing's specs, they noticed a potential assembly issue: both fitting ends were specified as female threads (female/female configuration), making it impossible for them to connect. We questioned: Could the thread specification on the drawing be incorrect?

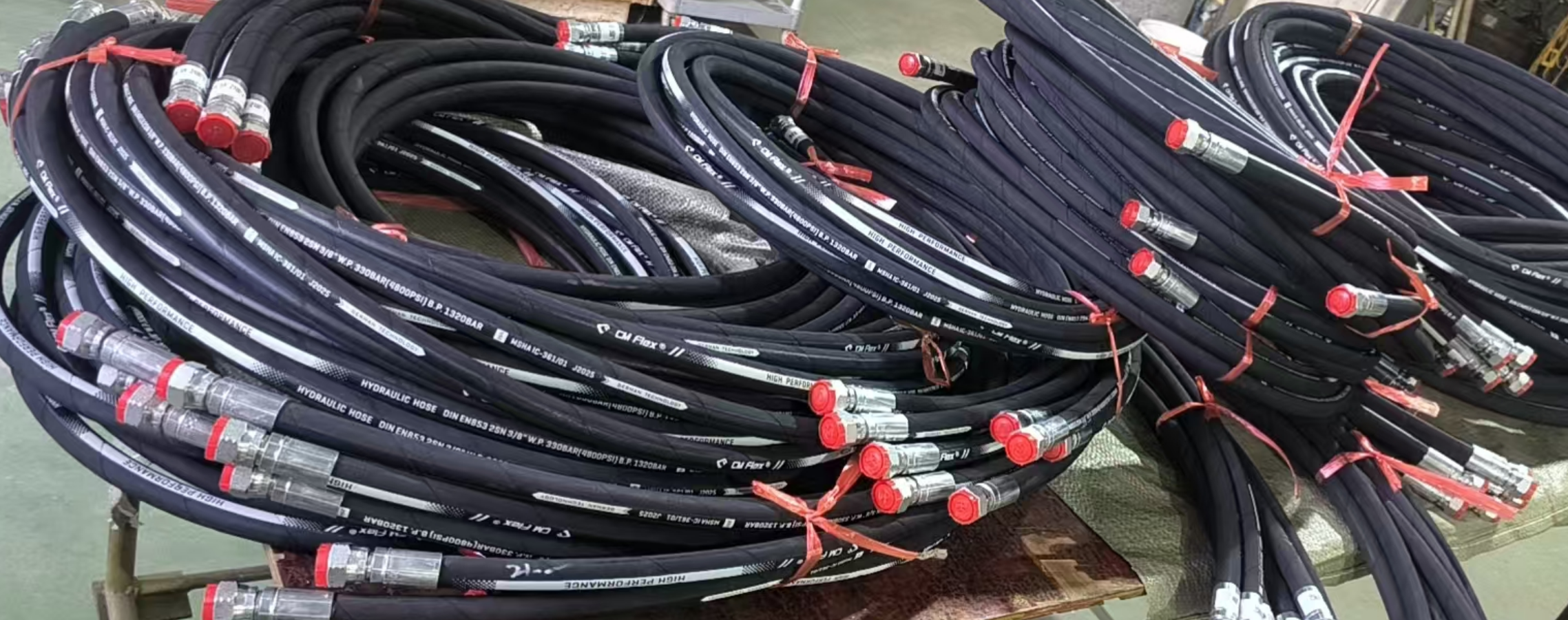

We immediately stopped the packing process. Detailed photos of the hydraulic hose assemblies, focusing on the thread types of the fittings, were sent to the client with our professional query.

Two days later, the client confirmed the error. One hose end fitting should indeed have been a male thread, making the correct configuration male-to-female. They thanked us for our thorough review.

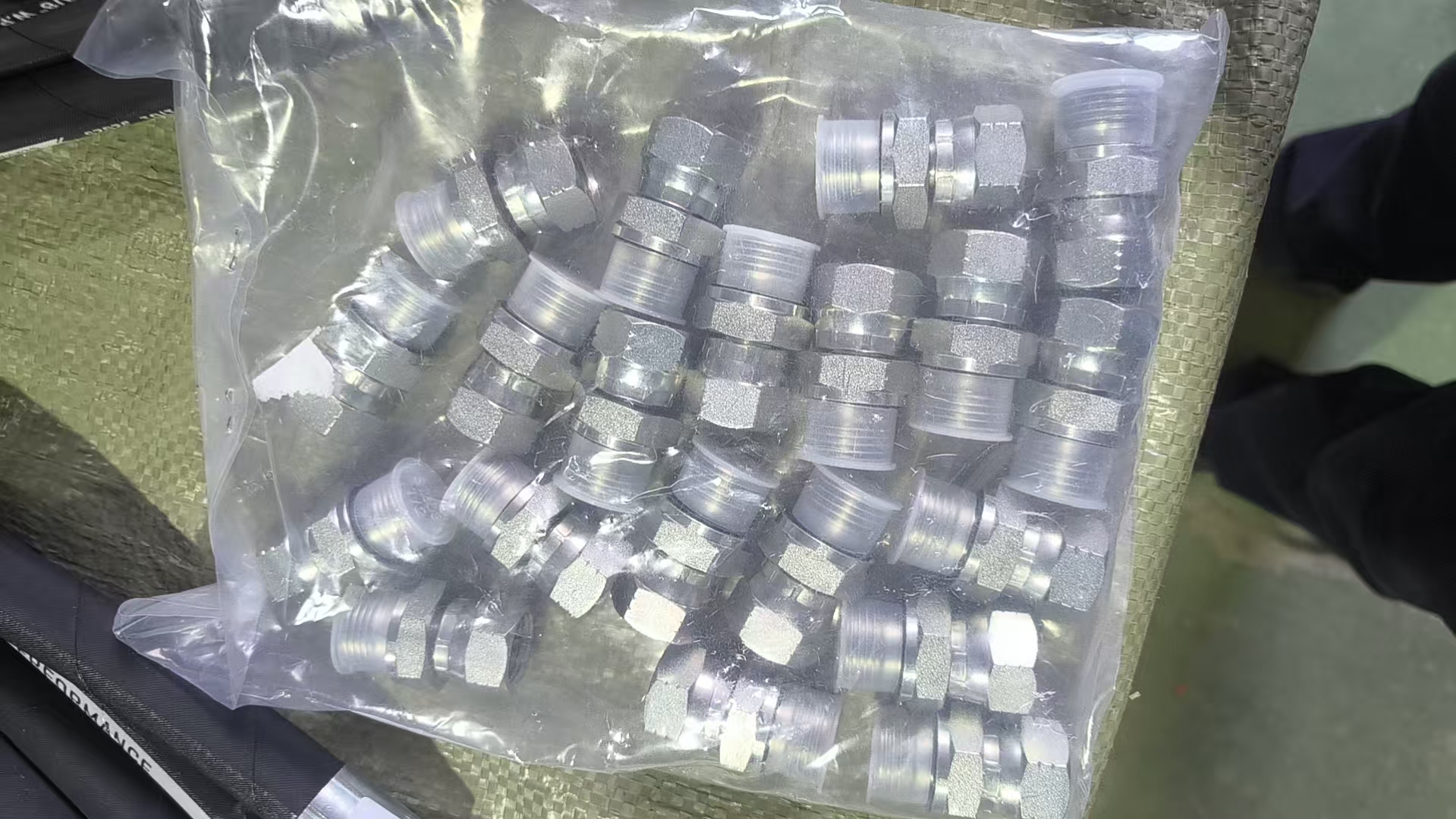

To prevent project delays, our factory prioritized remachining the correct fittings. Within 48 hours, the new couplings were ready and assembled onto the hoses.

The client deeply appreciated our diligence. By catching this hose assembly discrepancy, we saved them from costly rework and downtime.

This experience underscores our commitment: we deliver more than just hydraulic hoses—we deliver trust and proactive partnership.

# hydraulic hose assembly  # fitting ends
